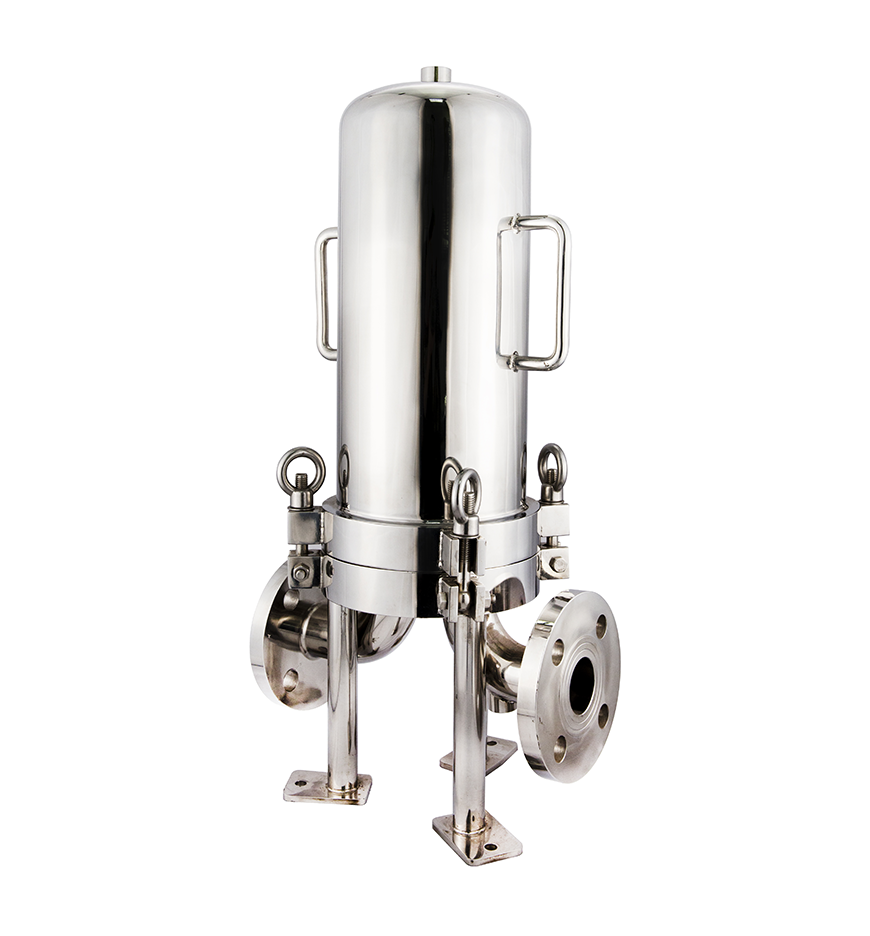

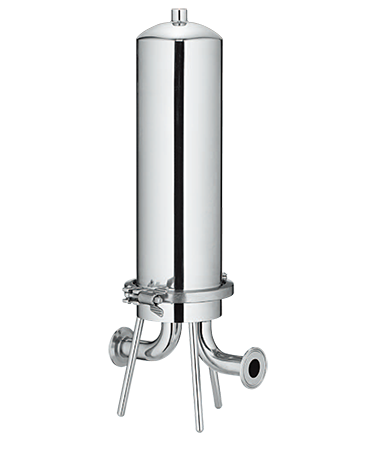

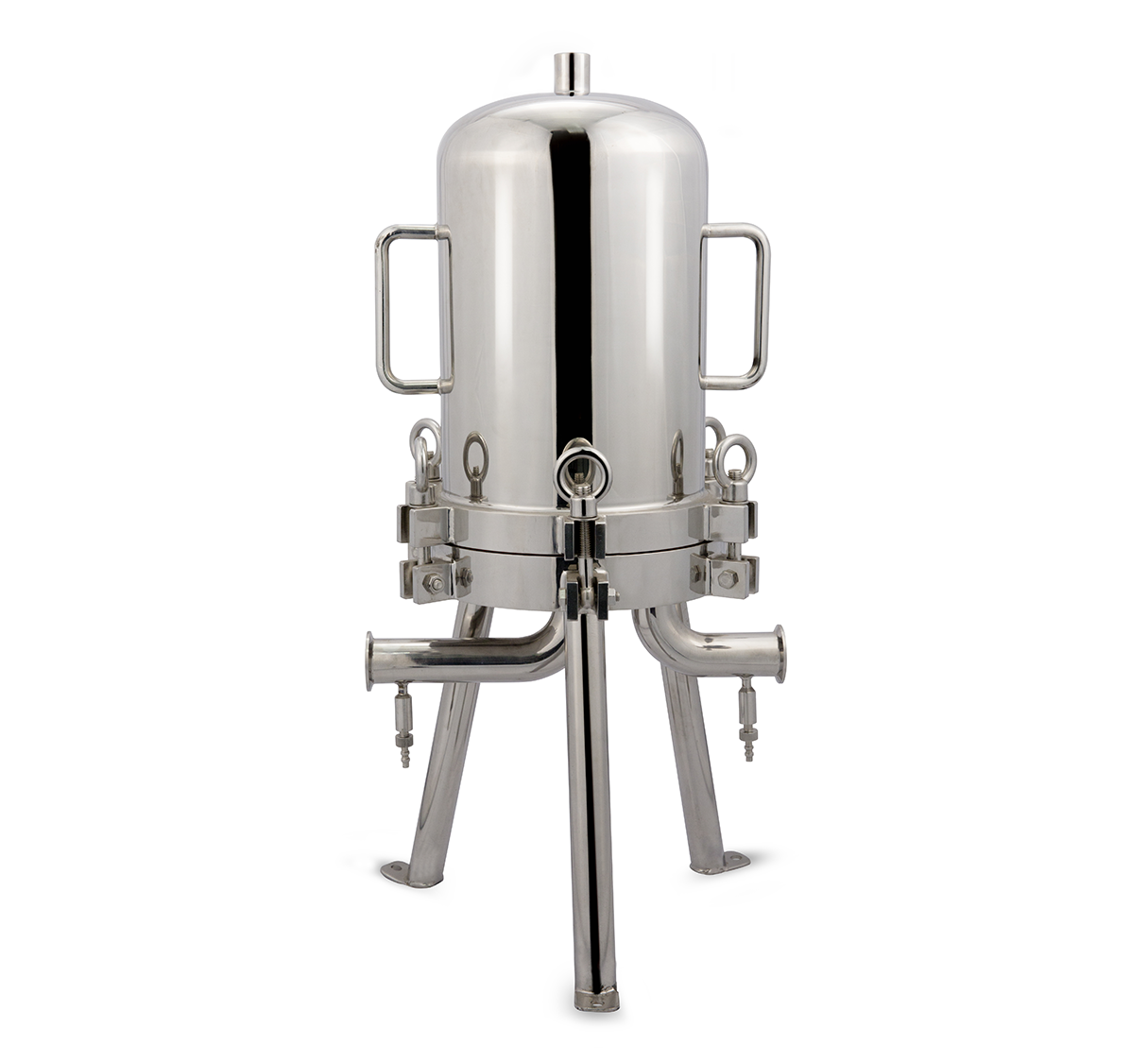

Multi Elements Cartridge Filter Housing
SAN-MCH Satinless Steel Sanitary cartr idge housings have surface finish of mechanical
polished, making the housings ideal
housings can be disassembl
for demanding processes requiring high purity.The
ed in all parts eliminating possibility of rtained particles and
and making more effective cleaning. The design of clamp closure advantages the housing with convenient operation and quick element change out. Manufactured by 100% stainless steel,the housingare competent to workin a wide range of critical applications.
Specifications
Ordering Guide
| SAN | Elements No | Adapters | Length(Inch) | Inlet/outlet | ||||
MCH | 3 | 3 | A | DOE | 10 | 10" | NT | NPT |
| 5 | 5 | E | 222/Fin | 20 | 20" | FL | FLANGE | |
| 7 | 7 | E1 | 222/Flat | 30 | 30" | BP | BSP | |
| 9 | 9 | F | 226/Fin | 40 | 40" | TC | Tri Clamp | |
| F1 | 226/Flat | |||||||
Part No=MCH+Element NO+Adapters+Length+onlet/outlet
EG: A 5PCS 40 inch 226/Fin adapters and Flange inlet/outler housing
The Part NO:MCH5F40FL
