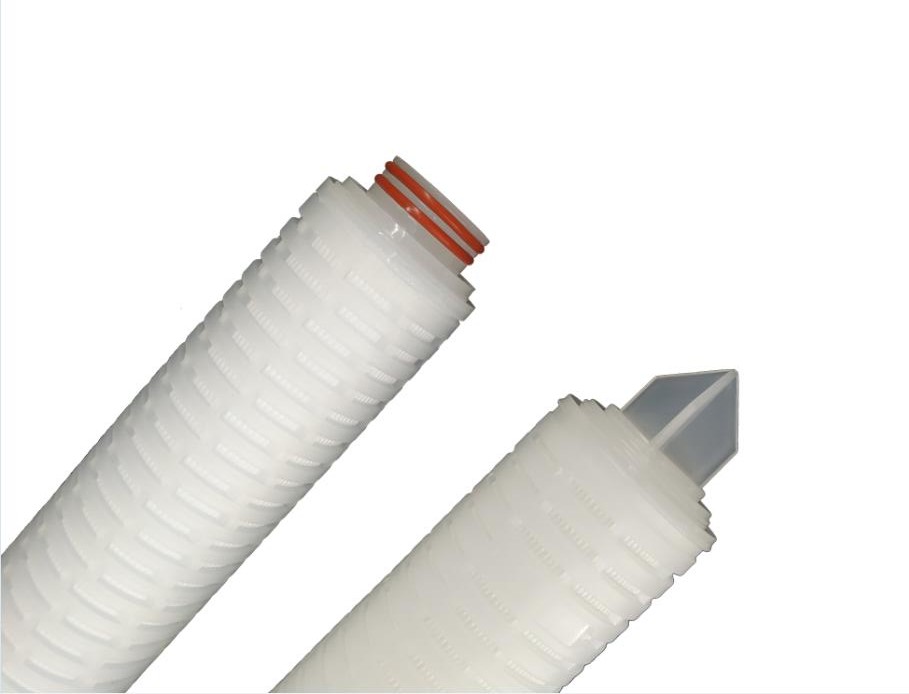

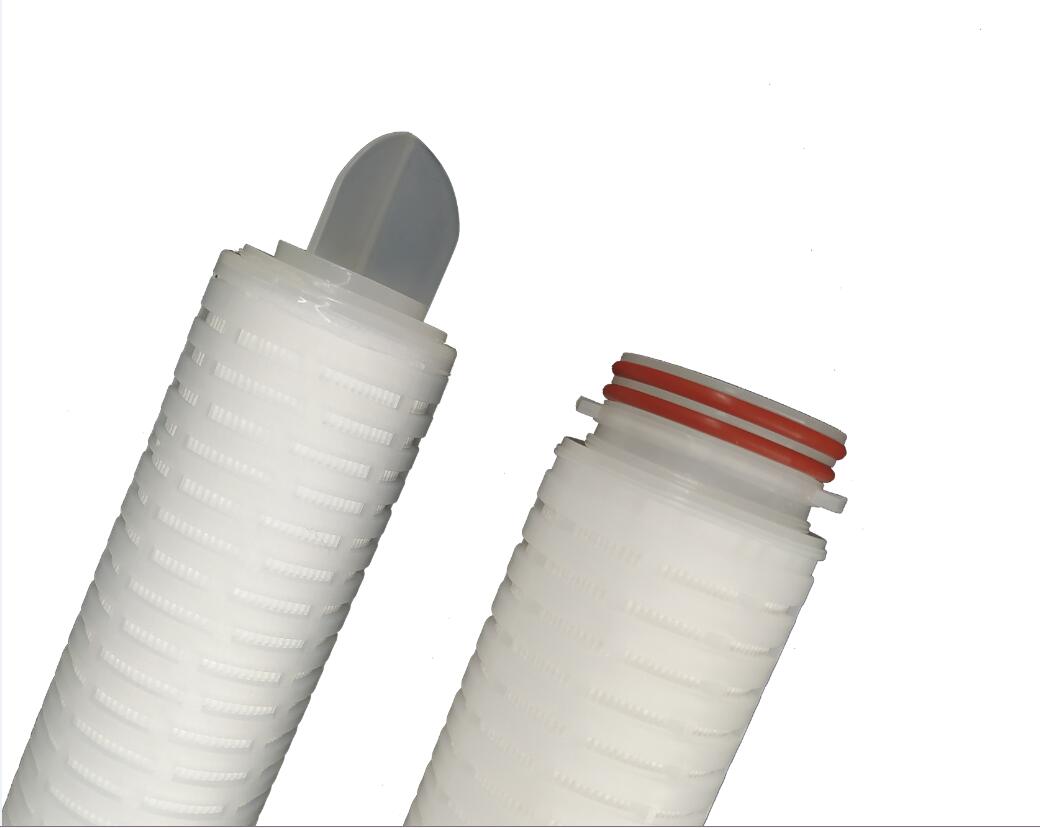

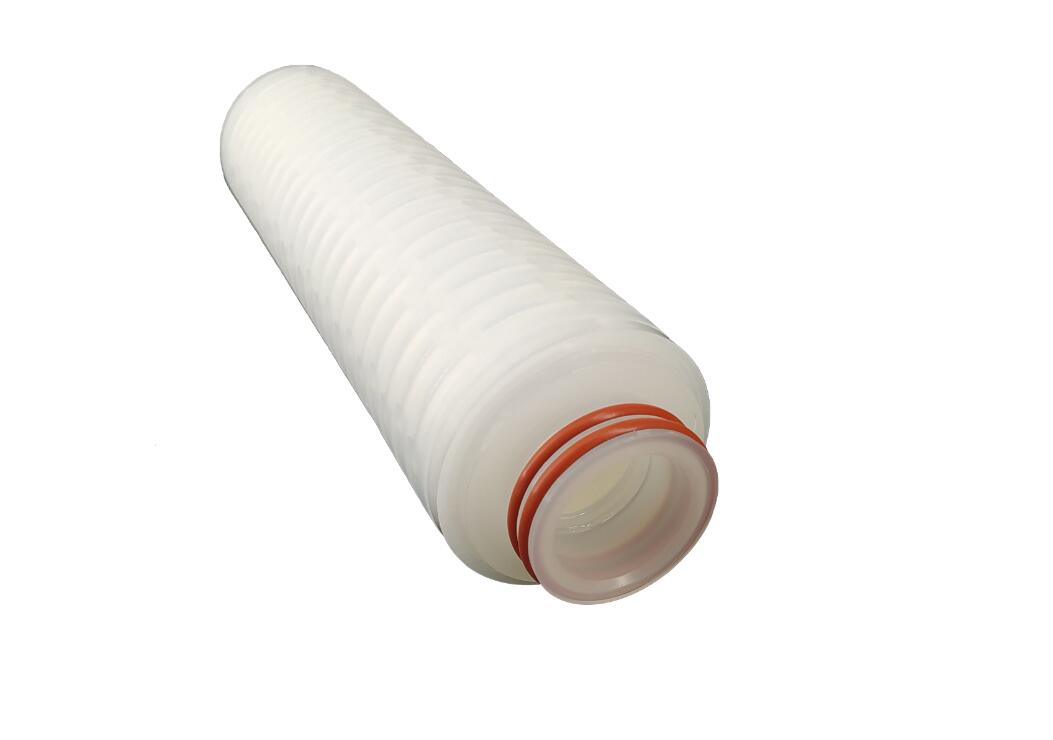

Absolute PP Pleated Filter

ECO-DAP is an absolute pleated filters,the all polypropylene structure provide a wide range of applications and cost effective. The extended pleated polypropylene media area provide high flow rates low pressure drop and increased dirt holding capacity.

Product Details
Specifications

Materials of Construction Features Dimensios

Outer Cage: Polypropylene Ratings from 0.5 to 90 micron OD:2.7"(70mm)

Inner Cage: Polypropylene Absolute Filter Rating Length:10",20",30",40"

Endcaps: Polypropylene Multi-layers filter media up to five

O-ring&Gasket: Silicone, EPDM Long service life & economy costs

Filter Media: Polypropylene FDA listed all polypropylene components

Specifications

Normal Operation Temperature:	up to 55°C
Max Operation Temperature:	80°C△P≦1Bar
Maximum Pressure differential:	4.2bar at 25°C
Maximum Reverse pressure differential:	2.1 bar at 25°C
Filtration Area:	0.6m2
Work PH Value:	1-14
Back Wask	not rcommend

Ordering Guide

ECO	Micron		Adapters		Length(Inch)		O-ring
DAP	05	0.5	A	DOE	10	10"	V	Viton
	1	1.0	E	222/Fin	20	20"	E	EPDM
	5	5.0	E1	222/Flat	30	30"	S	Silicone
	10	10.0	F	226/Fin	40	40"	N	BUNA-N
	25	25.0	F1	226/Flat			T	TEFLON
	50	50.0

Part No=DAP+Micron+Adapters+Length+O-ring

EG: A 40 inch 0.5um filters with 226/Fin adapters and Viton O-ring

The Part NO:DAP05F40V
