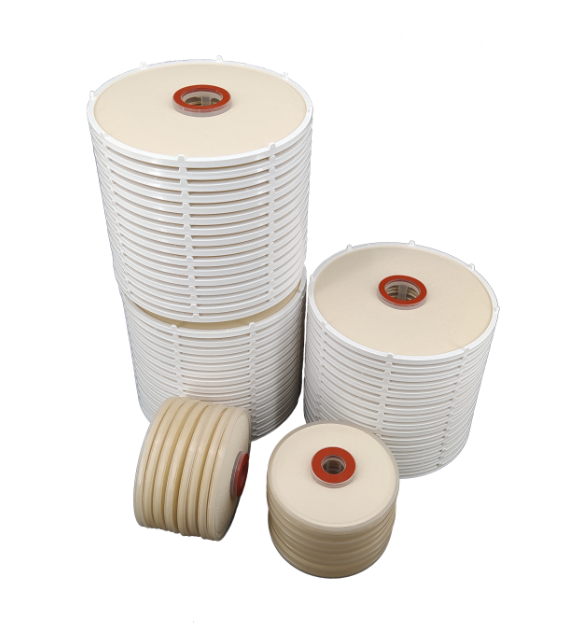

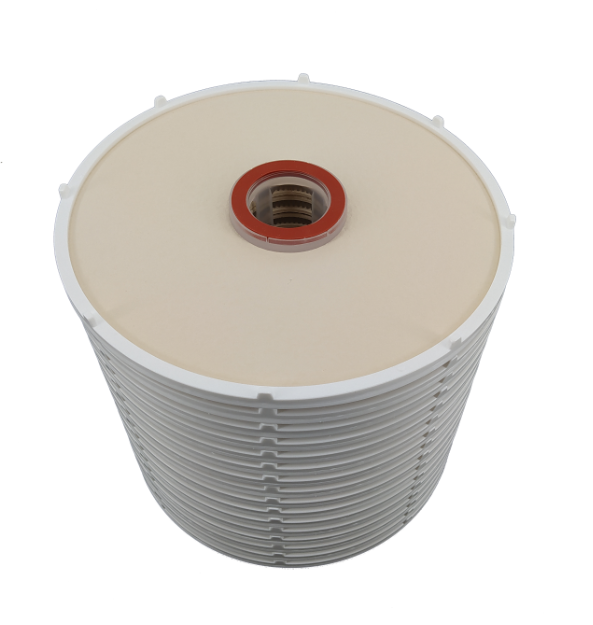

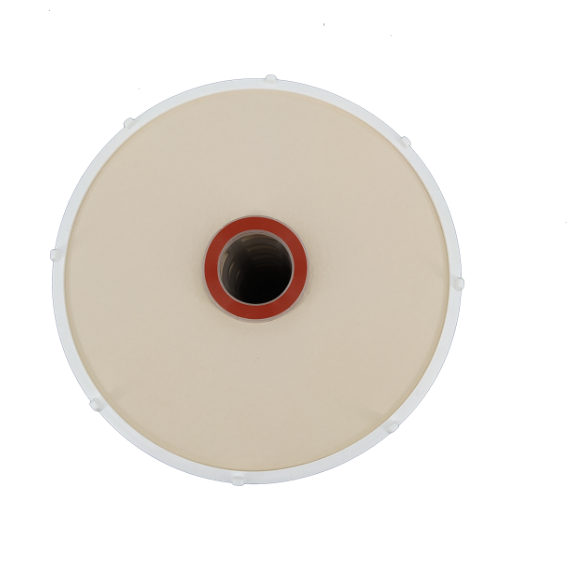

Lenticular Filter

ECO-DL of the surface and depth filtration provides fibers a long Lenticular filter cartridge with depth filter sheets,multi options diameters and micron ratings.Thefilter media hasa fixed pore construction of high quality the combination life time. Due to use of the premium quality filter fabrics,the depth filter cartridges have superior flow characteristics with very lowwith very low pressure drop compare to normal depth media of similar micron rating, the large filtration area have a high dirty-holding capacity and save the cost.

Product Details
Specifications

Materials of Construction Features Dimensios

Outer Cage: Polypropylene Ratings 0.2-0.4,0.4-0.6, 1.0-3.0,2.0-5.0(um) OD: 8",12",16"

Inner Cage: Polypropylene Gradient filtration Length:10"

Endcaps: Polypropylene High surface area

O-ring&Gasket: Silicone, EPDM Long service life

Filter Media: Cellulose fibers FDA listed all polypropylene components

Specifications

Ordering Guide

ECO	Micron		OD(Inch)		Cells(Pcs)		O-ring
DL	A	0.2-0.4	8	8"	7	7	V	Viton
	B	0.4-0.6	12	12"	9	9	E	EPDM
	C	1.0-3.0	16	16"	12	12	S	Silicone
	D	3.0-5.0			14	14	N	BUNA-N
	E	5.0-7.0			16	16

Part No=DL+Micron+OD+Cells+O-ring

EG: A 0.4-0.6um filters with OD12",16 Cells and Viton O-ring

The Part NO:DLB1216V
