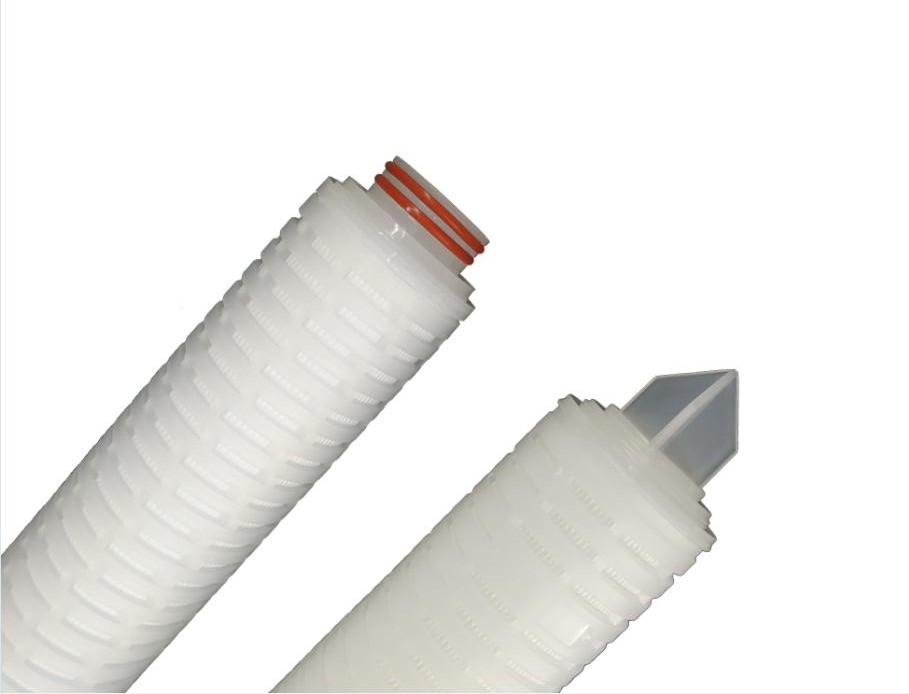

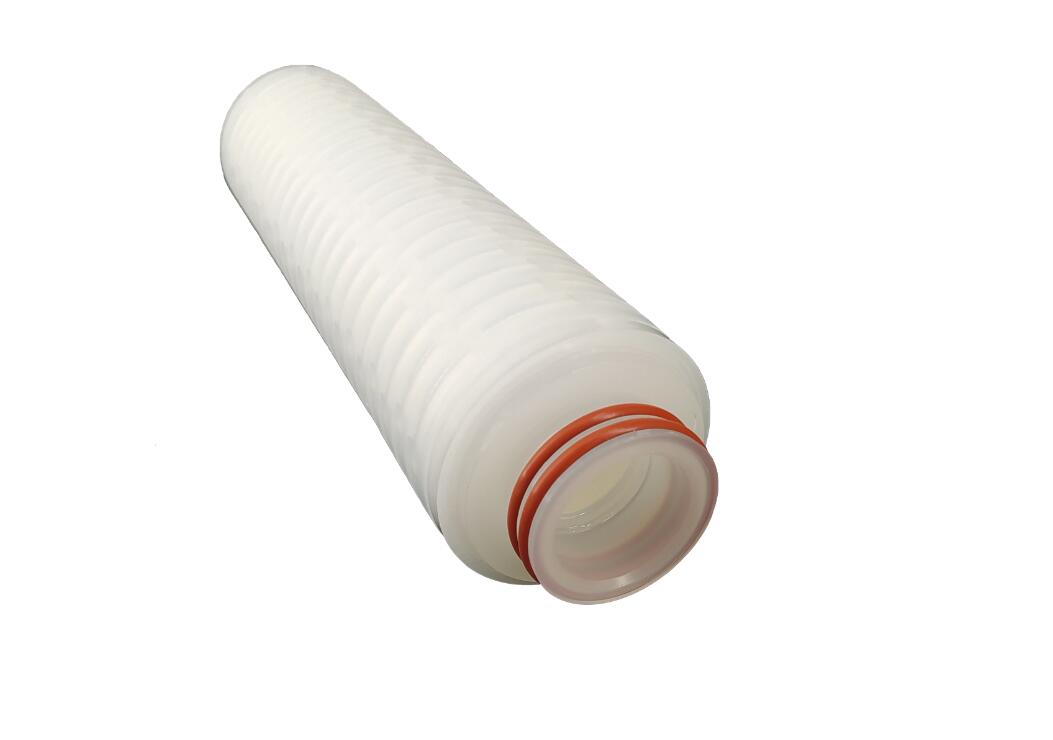

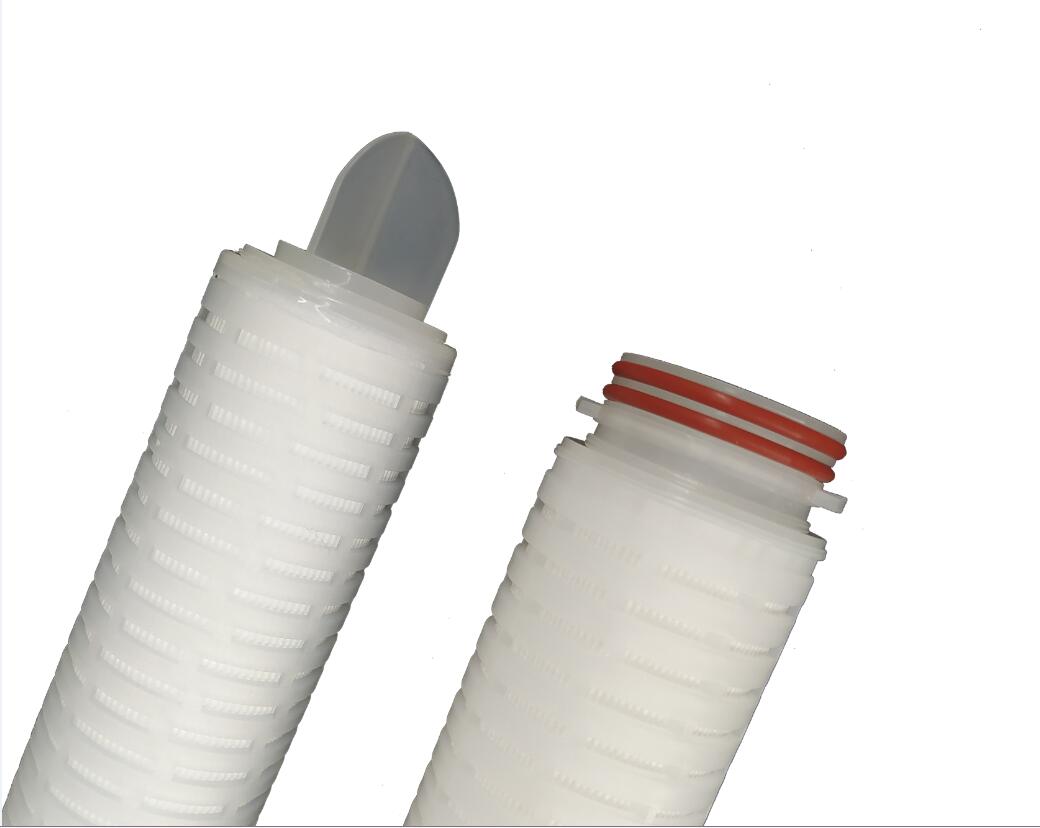

Nominal PP Pleated Filter

ECO-DNPis a higly efficient PP pleated filters,the all polypropylene structure provide a wide provide a wide range of applications and cost effective. The extended pleated polypropylene media area provide high flow rates low pressure drop and increased dirt holding capacity.

Product Details
Specifications

Materials of Construction Features Dimensions

Outer Cage: Polypropylene Ratings from 0.1 to 50 micron OD:2"(70mm)

Inner Cage: Polypropylene All polypropylene structures Length:10",20",30",40"

Endcaps: Polypropylene Nominal Filter Rating

O-ring&Gasket: Silicone, EPDM Multi-layers filter media up to five

Filter Media: Polypropylene FDA listed polypropylene components

Specifications

Normal Operation Temperature:	up to 55°C
Max Operation Temperature:	80°C△P≦1Bar
Maximum Pressure differential:	4.2bar at 25°C
Maximum Reverse pressure differential:	2.1 bar at 25°C
Filtration Area:	0.6m2
Work PH Value:	1-14
Back Wask	not rcommend

Ordering Guide

ECO	Micron		Adapters		Length(Inch)		O-ring
DNP	001	0.1	A	DOE	10	10"	V	Viton
	002	0.2	E	222/Fin	20	20"	E	EPDM
	045	0.45	E1	222/Flat	30	30"	S	Silicone
	100	1.0	F	226/Fin	40	40"	N	BUNA-N
	500	5.0	F1	226/Flat			T	TEFLON
	1000	10.0

Part No=DNP+Micron+Adapters+Length+O-ring

EG: A 40 inch 5.0um filters with 226/Fin adapters and Viton O-ring

The Part NO:DNP500F40V
