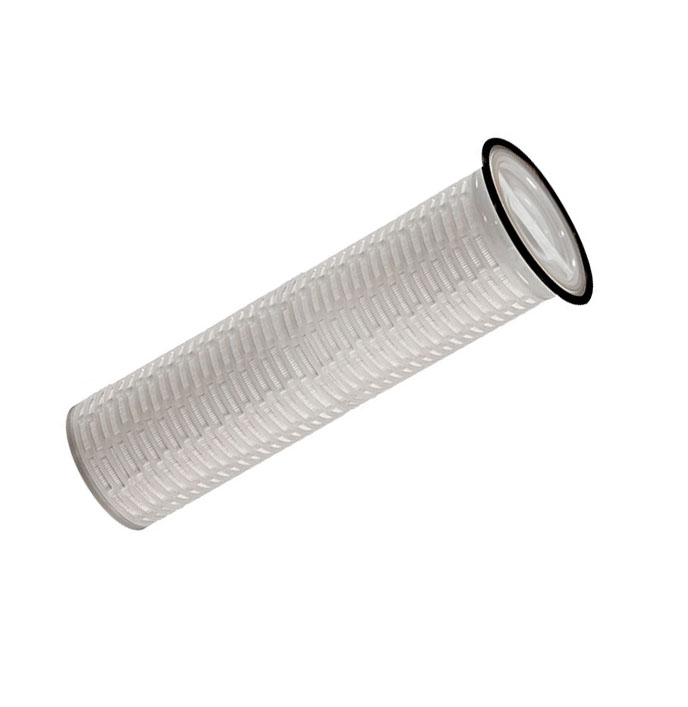

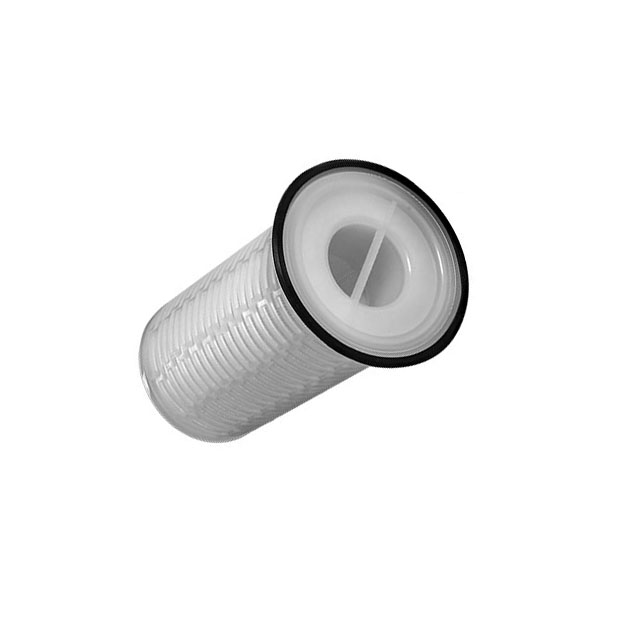

HFB Bag Style High Flow Filter

This kind of cartridges combine the performance advantages of cartridge filters with the ease use of bag filter systems. It offers unique combination of benefits and unmatched economics. Filtration customers no longer have to choose between cartridge and bag technologies. The pleated media increases the effective filtration area with high flow and long service life.

Materials of Construction                               Features                                                       Dimensios

Outer Cage:       Polypropylene                                                      High performance filter media                                                 OD:6"(152mm)

Inner Cage:        Polypropylene                                                      inside-to-outside fluid flow                                                      Length:16",32"

Endcaps:            Polypropylene                                                      High surface area

O-ring&Gasket: Silicone, EPDM                                                     Long service life

Filter Media:      Polypropylene                                                      FDA listed all polypropylene components





Specifications

Max Operation Temperature:80°C
Maximum Pressure differential:3.4bar at 60°C
Recommended Change out DP:2.4Bar at 20°C


Ordering Guide

HFB                    Micron                   Out Support
               Length(Inch)
                     O-ring



HFB

       045        0.45         C      Cage        A        16"         V  Viton
       065        0.65         M      Mesh        B        32"         E  EPDM
       100        1.0



         S  Silicone






         N  BUNA-N

















Part No=HFB+Micron+Out support+Length+O-ring

EG: A 32 inch 0.45um filters with out cage and epdm O-ring

The Part NO:HFB045BE
