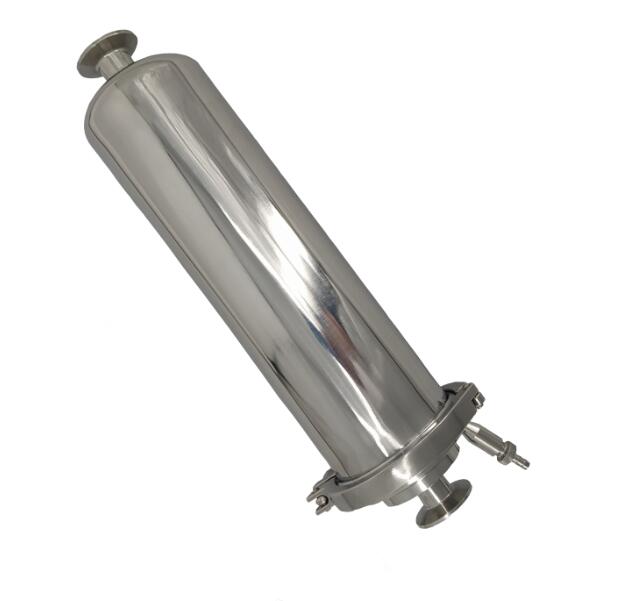

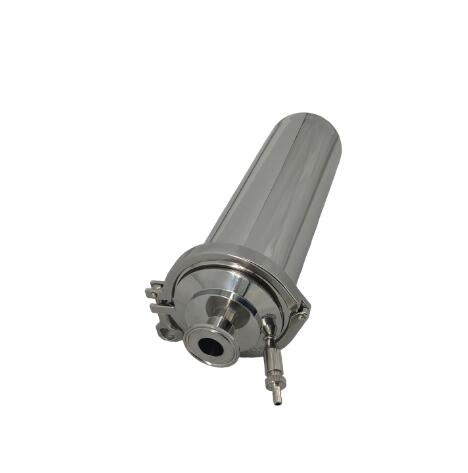

Inline Filter Housing

Stainless steel In-line Filter Housing directly installed in the pipeline,easy cleaning and install,the exhaust valve in the upper inlet can realize online integrity detection.Both inside and outside surface adopts mirror polishing,no garbage and dead Angle of hygiene residue. It is widely used in the field of pharmacy, life science for gas sterilization and liquid clarification.

Specifications

Ordering Guide

SAN              Elements No                   Adapters
               Length(Inch)
                     Inlet/outlet



MCH

       3       3         A       DOE        10        10"         NT      NPT
       5       5         E     222/Fin        20        20"         FL   FLANGE
       7       7         E1     222/Flat        30        30"         BP      BSP
       9       9         F     226/Fin        40        40"         TC  Tri Clamp


         F1     226/Flat












Part No=MCH+Element NO+Adapters+Length+onlet/outlet

EG: A 5PCS 40 inch 226/Fin adapters and Flange inlet/outler housing

The Part NO:MCH5F40FL
