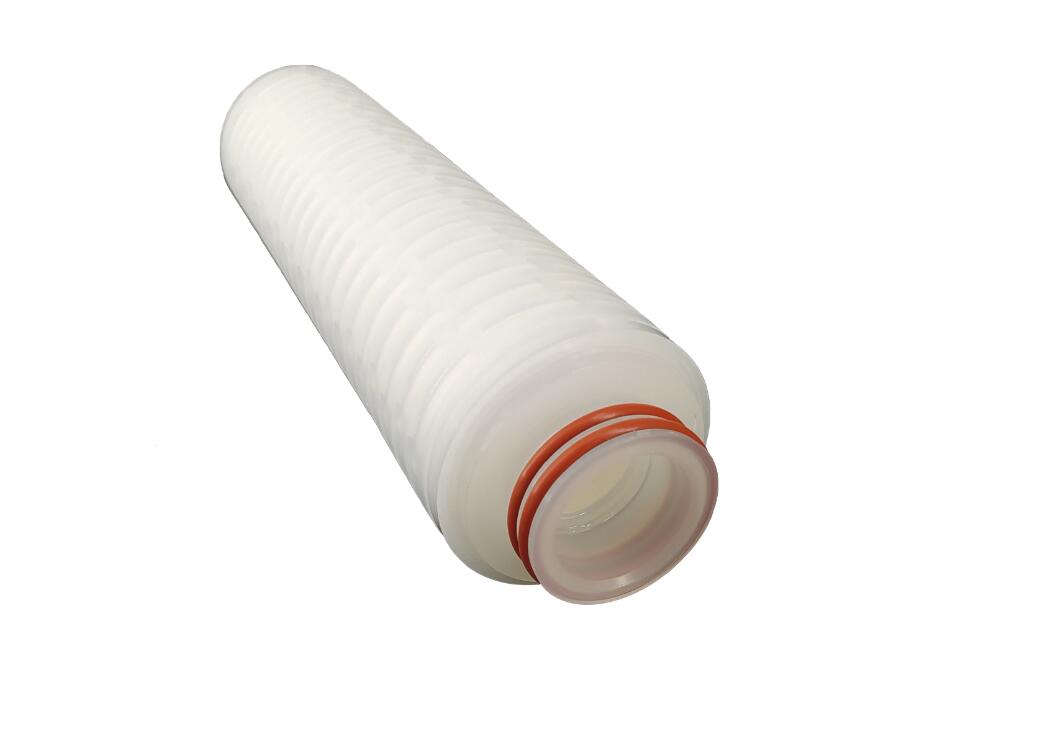

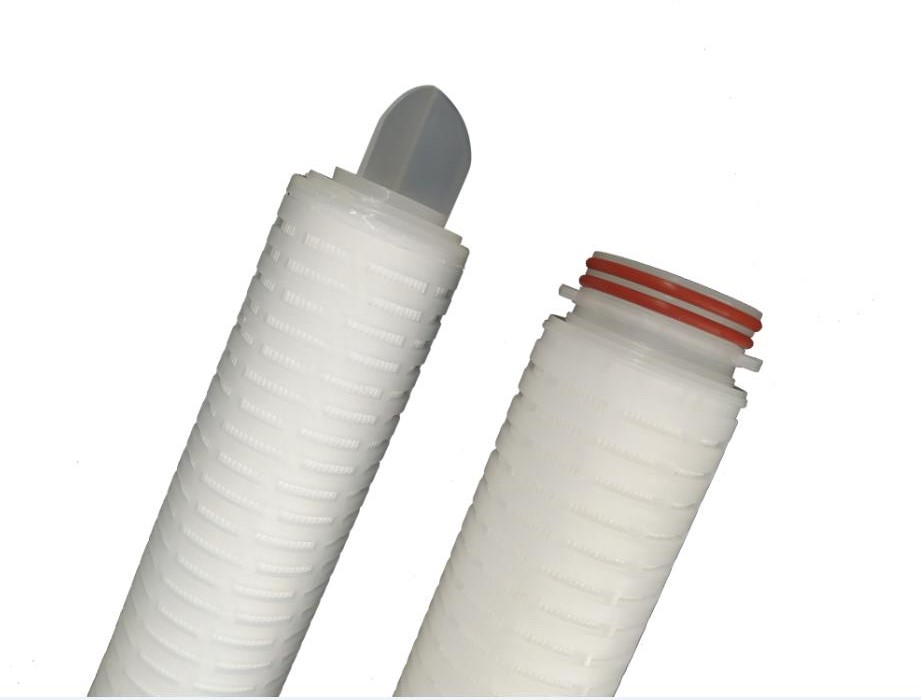

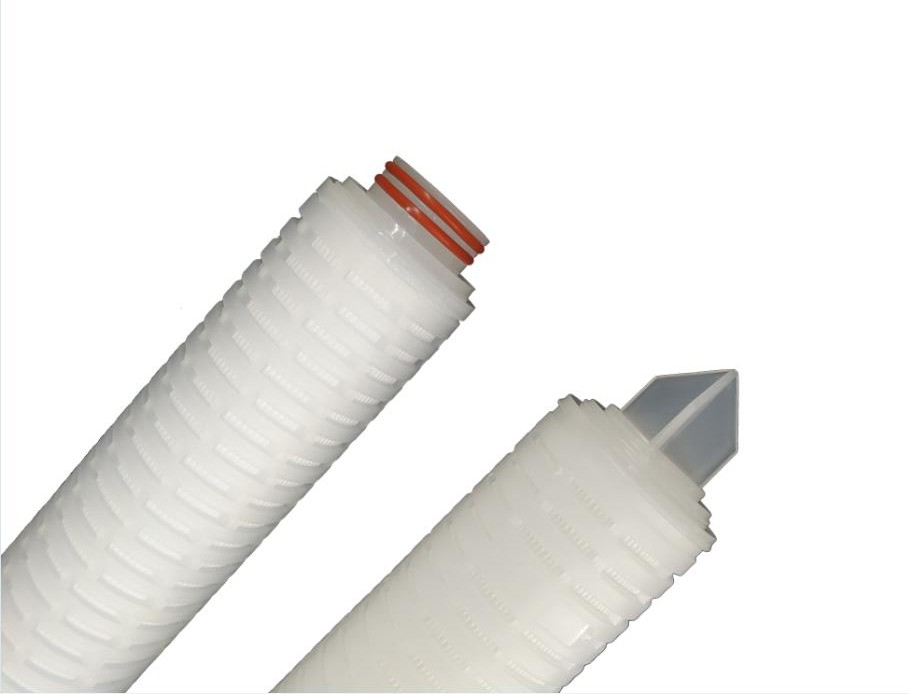

Glass Fiber Pleated Filter

ECO-GF is a high dirt holding depth filter, the fibergalss filter media provide a high dirty holding and a long work life, it with good performance to filter the liquid clear,the large filtration area provide high flow rates and low pressure drop.



Materials of Construction                               Features                                                       Dimensios

Outer Cage:       Polypropylene                                                      Ratings from 0.5 to 25 micron                                                  OD:2.7"(70mm)

Inner Cage:        Polypropylene                                                      Absolute Filter Rating                                                               Length:10",20",30",40"

Endcaps:            Polypropylene                                                      Multi-layers filter media up to five

O-ring&Gasket: Silicone, EPDM                                                     Long service life & economy costs

Filter Media:      Glass Fiber                                                            FDA listed materials components



Specifications

Normal Operation   Temperature:up to 55°C
Max Operation Temperature:80°C△P≦1Bar
Maximum Pressure differential:4.2bar at 25°C
Maximum Reverse pressure differential:2.1 bar at 25°C
Filtration Area:0.6m2
Work PH Value:1-14
Back Wasknot rcommend


Ordering Guide

ECO                    Micron                   Adapters
               Length(Inch)
                     O-ring



GF

       05         0.5         A       DOE        10        10"         V  Viton
       1         1.0         E     222/Fin        20        20"         E  EPDM
       5         5.0         E1     222/Flat        30        30"         S  Silicone
      10        10.0         F     226/Fin        40        40"         N  BUNA-N
      25        25.0         F1     226/Flat

         T  TEFLON







Part No=GF+Micron+Adapters+Length+O-ring

EG: A 40 inch 1.0um filters with 226/Fin adapters and Viton O-ring

The Part NO:GF1F40V
