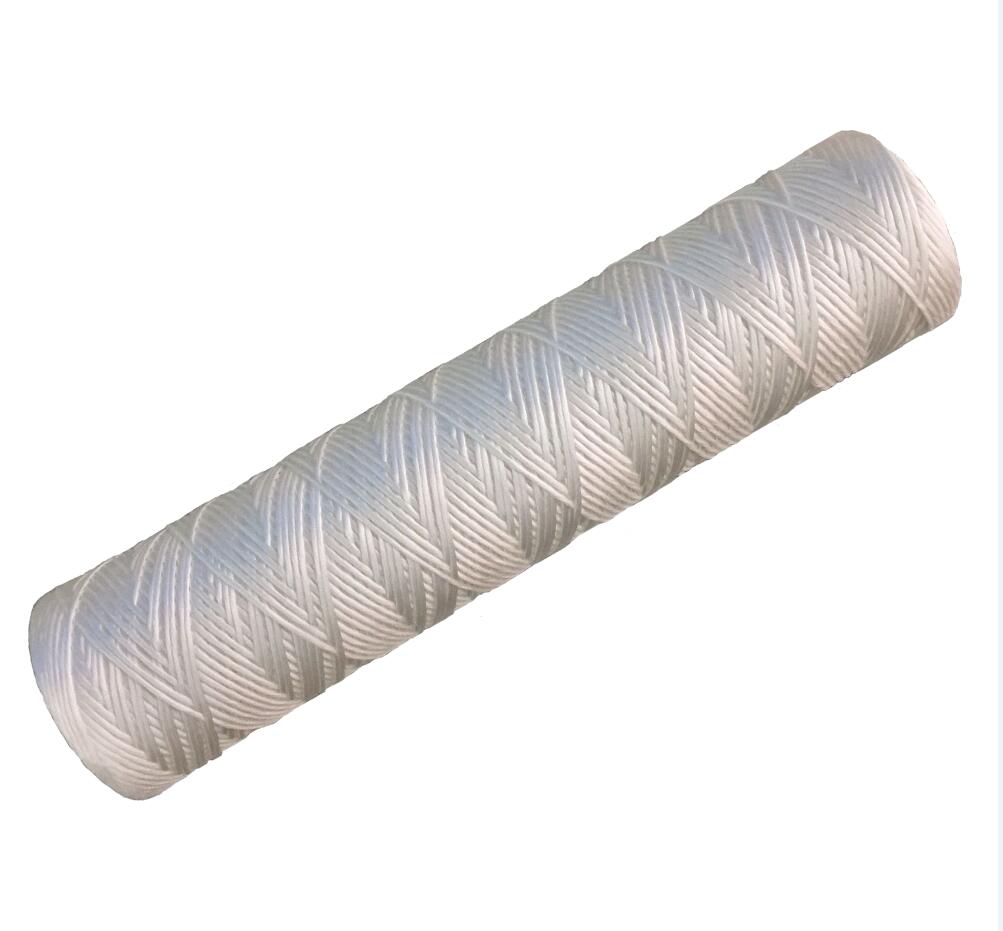

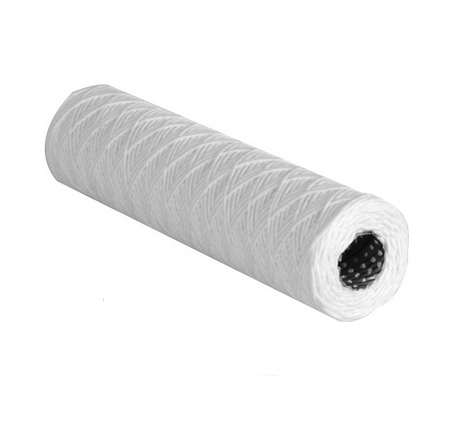

Nylon Wound Filter
Materials of Construction Features Dimensions
Filter media: Nylon Ratings from 0.5 to 50 micron OD:63mm,114mm
Inner Cage: SS304,SS316 High Working temperare ID:28mm,30mm
Endcaps: Polypropylene High Differential Pressure reach to 4.2bar Length:10",20",30",40"
Specifications
Normal Operation Temperature: | up to 110°C |
Max Operation Temperature: | 120°C△P≦1Bar |
Maximum Pressure differential: | 4.2bar at 25°C |
Work PH Value: | 6-14 |
Back Wask | not rcommend |
Ordering Guide
WF | Micron | Adapters | Length(Inch) | Inner Cage | ||||
N | 050 | 0.5 | A | DOE | 10 | 10" | A | SS304 |
100 | 1.0 | 20 | 20" | B | SS316 | |||
500 | 5.0 | 30 | 30" | |||||
1000 | 10 | 40 | 40" | |||||
2500 | 25 | |||||||
5000 | 150 |
Part No=WF+N+Adapters+Length+Inner Cage
EG: A 40 inch 5.0um filters with SS304 inner Cage
The Part NO:WFN500A40A
