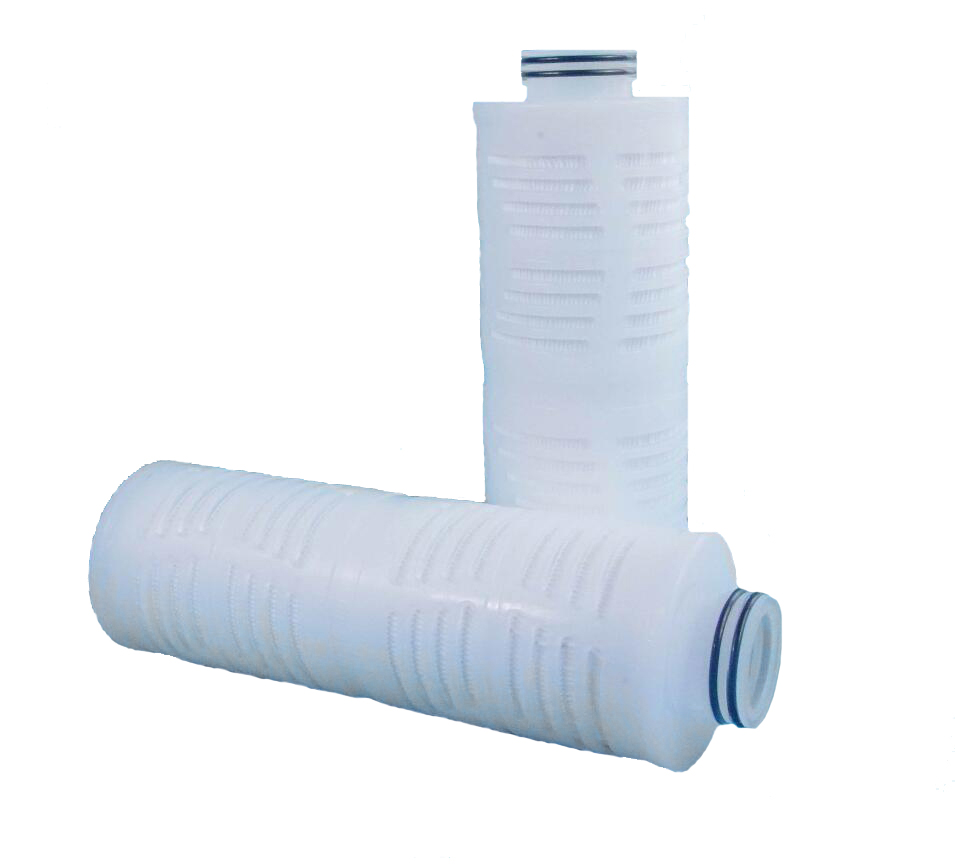

All Teflon AFL Filter

All Teflon Filter using PTFE membranes and PFA core and cage, have great corrosion resistance and durability in highly corrosive acids, bases and organic environment. After post treatment with 18.2 M¦¸.cm water£¬can provide very high cleanliness level filters, ideally suited for corrosive chemicals and gases filtration in the semiconductor industry. From raw materials purchase, transport to production and storage all operations follow ISO 9001 quality management system. The filter are manufactured, tested and packaged in a cleanroom to ensure products cleanliness. The filters are 100% intergrity tested prior to shipment, and provide the higher level of cleanliness filters for high cleanliness environment filtration.

Product Details
Specifications

Materials of Construction Features Dimensios

Outer Cage: PFA Ratings 0.02-0.45micron OD:3.26"(83mm)

Inner Cage: PFA Absolute Filter Rating Length: 4",10"

Endcaps: PFA High surface area

O-ring&Gasket:FEP Encapsulated Viton /Silicone Long service life

Filter Media: PTFE Membrane FDA listed all polypropylene components

Specifications

Maximum Operating Pressure	0.52 MPa (5.2 bar; 75.4 psi) @ 25°C , 0.12 MPa (1.2 bar; 17.4 psi) @ 170°C
Maximum Differential Pressure (forward)	0.43 MPa (4.3 bar; 61 psi)@ 25°C, 0.05 MPa (0.5 bar; 7.5 psi) @ 170°C
Maximum Reverse pressure differential	0.3 MPa (3.0 bar; 43.5 psi) @ 25°C,0.05 MPa (0.5 bar; 7.5 psi) @ 170°C
Recommended Changeout Pressure	0.24 MPa (2.4 bar; 34.8 psi) @ 25 ℃
TOC recovery	＜15 particles / 10 ml ≥ 0.2 μm@ 5 L/min DI water flow
Forward Online Steam Sterilization( 1Bar)	＜10 ppb of feed after120 L flush @ 1 L/min
Metallic extractables level	＜40 μg / 10” device

Ordering Guide

PMB	Micron		Adapters		Length(Inch)		O-ring
AFL	002	0.02	E	222/Flat	04	4"	T	FEP Encapsulate
	003	0.03			10	10"
	005	0.05
	010	0.1
	020	0.22
	045	0.45

Part No=AFL+Micron+Adapters+Length+O-ring

EG: A 10 inch 0.22um filters with 222/Flat adapters and Viton O-ring

The Part NO:AFL022E10T
