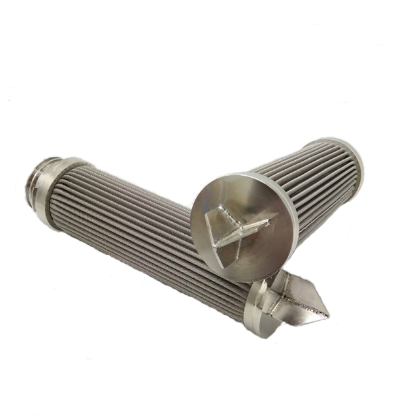

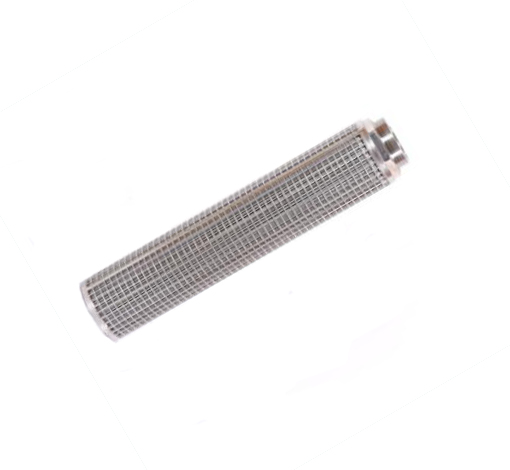

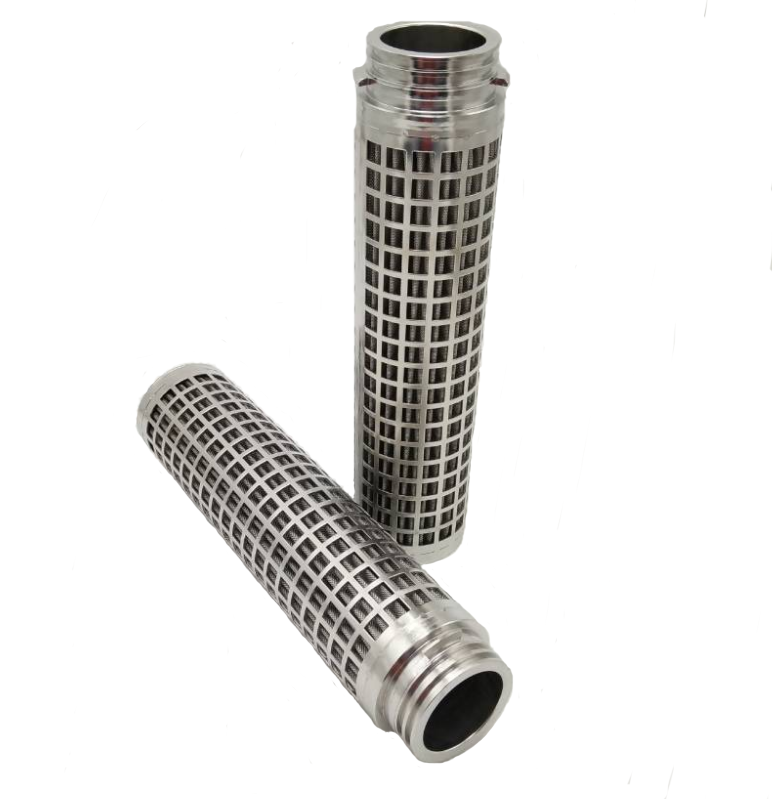

CST Wiremesh Cartridge Filter

CST Pleated wiremesh filter made of stainless steel 316,use for steam filtration,steam was popular used in the industrial process, and the require of the steam quality is more and more higher, the high quality steam insure the system operation continuous and higher effective. Arc developed this filter special for the steam quality improve.

Materials of Construction                               Features                                                       Dimensios

Outer Cage:       Stainless Steel                                                      Ratings 3-150 micron                                                              OD:2.5"(60mm)

Inner Cage:        Stainless Steel                                                      High work temperature                                                           Length:10",20",30",40"

Endcaps:            Stainless Steel                                                      High flow rate

O-ring&Gasket: Silicone, EPDM                                                     Long service life

Filter Media:      Stainless Steel Wire mesh                                    FDA listed components





Specifications

Ordering Guide

CST                    Micron                   Adapters
               Length(Inch)
                     O-ring



STA

       03        3         A       DOE        10        10"         V  Viton
       05        5         E     222/Fin        20        20"         E  EPDM
       10       10         E1     222/Flat        30        30"         S  Silicone
       25       25         F     226/Fin        40        40"         N  BUNA-N


         F1     226/Flat

         T  TEFLON









Part No=STA+Micron+Adapters+Length+O-ring

EG: A 40 inch 03um filters with 226/Fin adapters and Viton O-ring

The Part NO:STA03F40V
