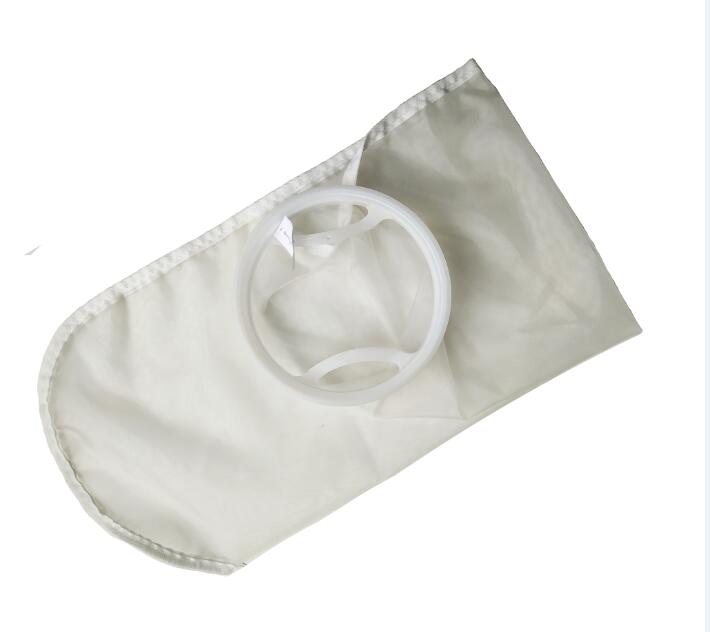

Nylon Filter Bag
Nylon mesh filterbag is a low cost disposable media, high solids loading capacity and washable, it can wok for high temperature viscosity。
Bag Filter Dimensions
Specifications
Material Seclection Guide
| Filter Medium | PP | PE | NYLON |
| Potables Liquid,water | 4 | 3 | 1 |
| Organic Solvents | 3 | 4 | 4 |
| Oils | 2 | 3 | 4 |
| Organic Acids | 4 | 3 | 2 |
| Alkalies | 4 | 0 | 4 |
| Oxidizing Acids | 1 | 3 | 2 |
| Strong Inorganic Acids | 4 | 2 | 0 |
| Dilutelnorganic Acids | 4 | 3 | 1 |
0=Not Recommened 1=Poor 2=Fair 3=Good 4=Excellent
Ordering Guide
| Bag Filter | Size | Materials | Ring | Micron | ||||
BF | 1 | #1 | P | PP | S | SS304 | 1 | 1um |
| 2 | #2 | E | PE | P | PP | 5 | 5um | |
| 3 | #3 | N | NYLON | 10 | 10um | |||
| 4 | #4 | 25 | 25um | |||||
Part No=BF+Size+Materials+Ring+Micron
EG: A 25um PE #2 filters bag with PP ring
The Part NO:BF2NP25
