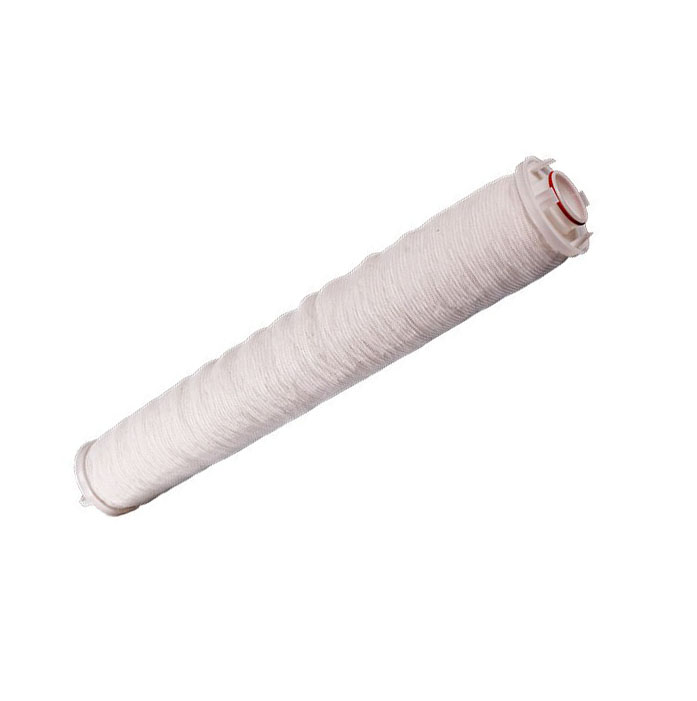

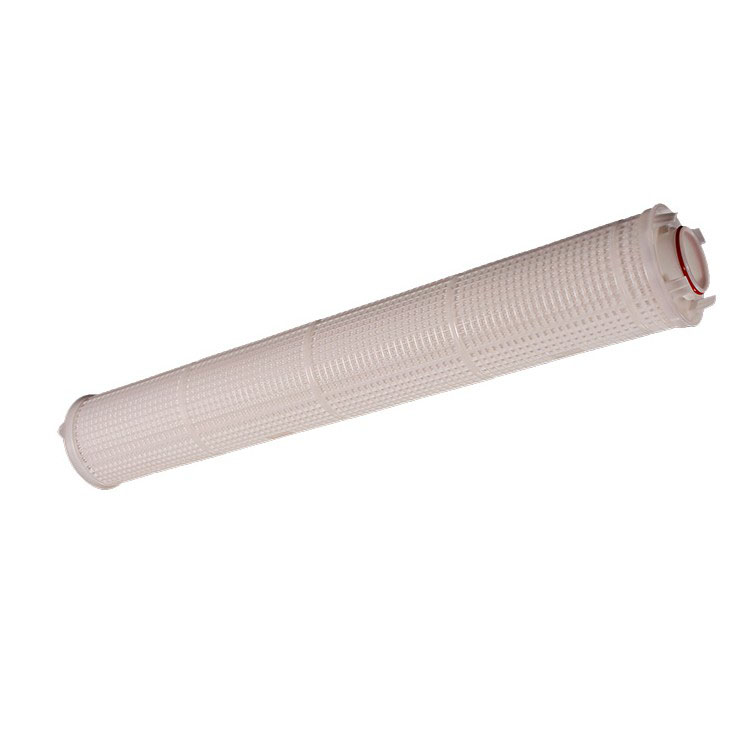

HFL-B High Flow filter

HFL-B Filter provide a high filtration area with 6"OD, the length is 40 inch can reach to 60inch. The polypropylene filter media with perfect chemicals performacne, can use for differenrt regions, the depth structure offers widly gradient filtration effiencicy.The inner oring insures no baypass, the handle design makes the installation more easier.

Materials of Construction                               Features                                                       Dimensios

Outer Cage:       Polypropylene                                                      High performance filter media                                                 OD:6"(152mm)

Inner Cage:        Polypropylene                                                      Outide-to-inside fluid flow                                                       Length:40",60"

Endcaps:            Polypropylene                                                      High surface area

O-ring&Gasket: Silicone, EPDM                                                     Long service life

Filter Media:      Polypropylene                                                      FDA listed all polypropylene components







Specifications

Max Operation Temperature:80°C
Maximum Pressure differential:3.4bar at 60°C
Recommended Change out DP:2.4Bar at 20°C


Ordering Guide

HFL                    Micron    Filter Media Structure
               Length(Inch)
                     O-ring



B

       045        0.45        V    Vertical        A        20"         V  Viton
       065        0.65        H   Horizontal        B        40"         E  EPDM
       100        1.0

        C        60"         S  Silicone






         N  BUNA-N

















Part No=HFLB+Micron+Filter Media Structure+Length+O-ring

EG: A 60 inch 0.45um filters with Vertical filter media and epdm O-ring

The Part NO:HFLB045VCE
