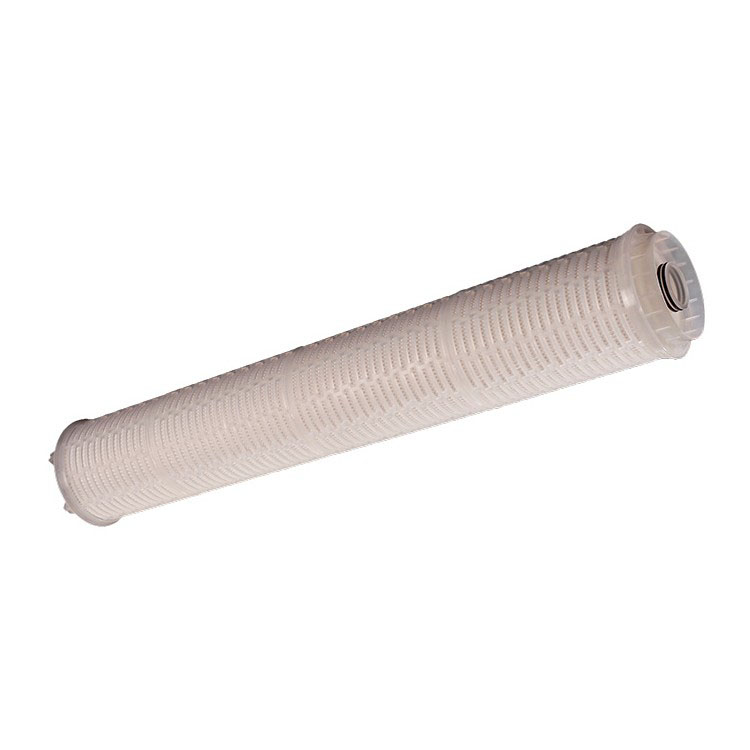

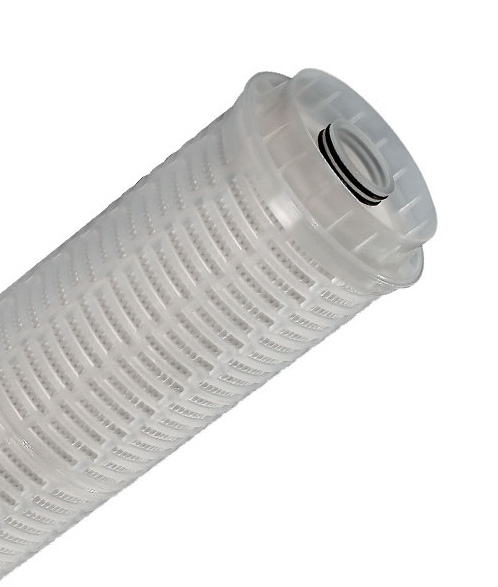

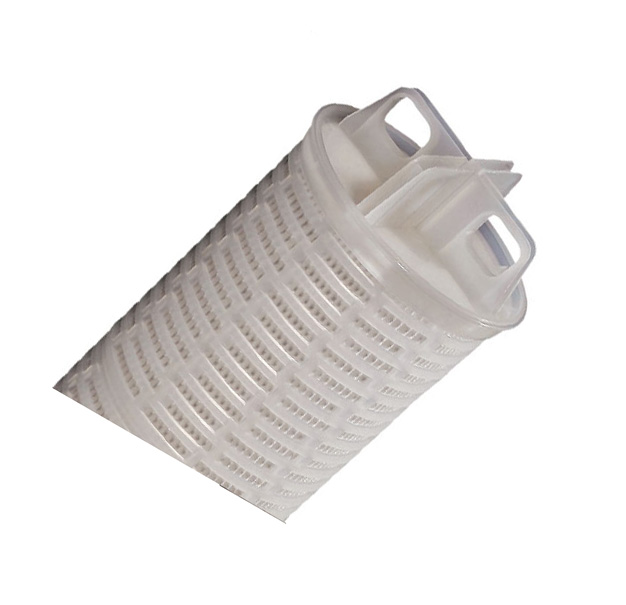

HFL-C High Flow Filters

HFL-C Filter provide a high filtration area with 6"OD, the length is 40 inch can reach to 60inch. The polypropylene filter media with perfect chemicals performacne, can use for differenrt regions, the depth structure offers widly gradient filtration effiencicy.The inner oring insures no baypass, the handle design makes the installation more easier.

Product Details
Specifications

Materials of Construction Features Dimensios

Outer Cage: Polypropylene High performance filter media OD:6"(152mm)

Inner Cage: Polypropylene Outide-to-inside fluid flow Length:40",60"

Endcaps: Polypropylene High surface area

O-ring&Gasket: Silicone, EPDM Long service life

Filter Media: Polypropylene FDA listed all polypropylene components

Specifications

Max Operation Temperature:	80°C
Maximum Pressure differential:	3.4bar at 60°C
Recommended Change out DP:	2.4Bar at 20°C

Ordering Guide

HFL	Micron		Filter Media Structure		Length(Inch)		O-ring
C	045	0.45	V	Vertical	A	20"	V	Viton
	065	0.65	H	Horizontal	B	40"	E	EPDM
	100	1.0			C	60"	S	Silicone
							N	BUNA-N

Part No=HFLC+Micron+Filter Media Structure+Length+O-ring

EG: A 60 inch 0.45um filters with Vertical filter media and epdm O-ring

The Part NO:HFLC045VCE
